Raw Material

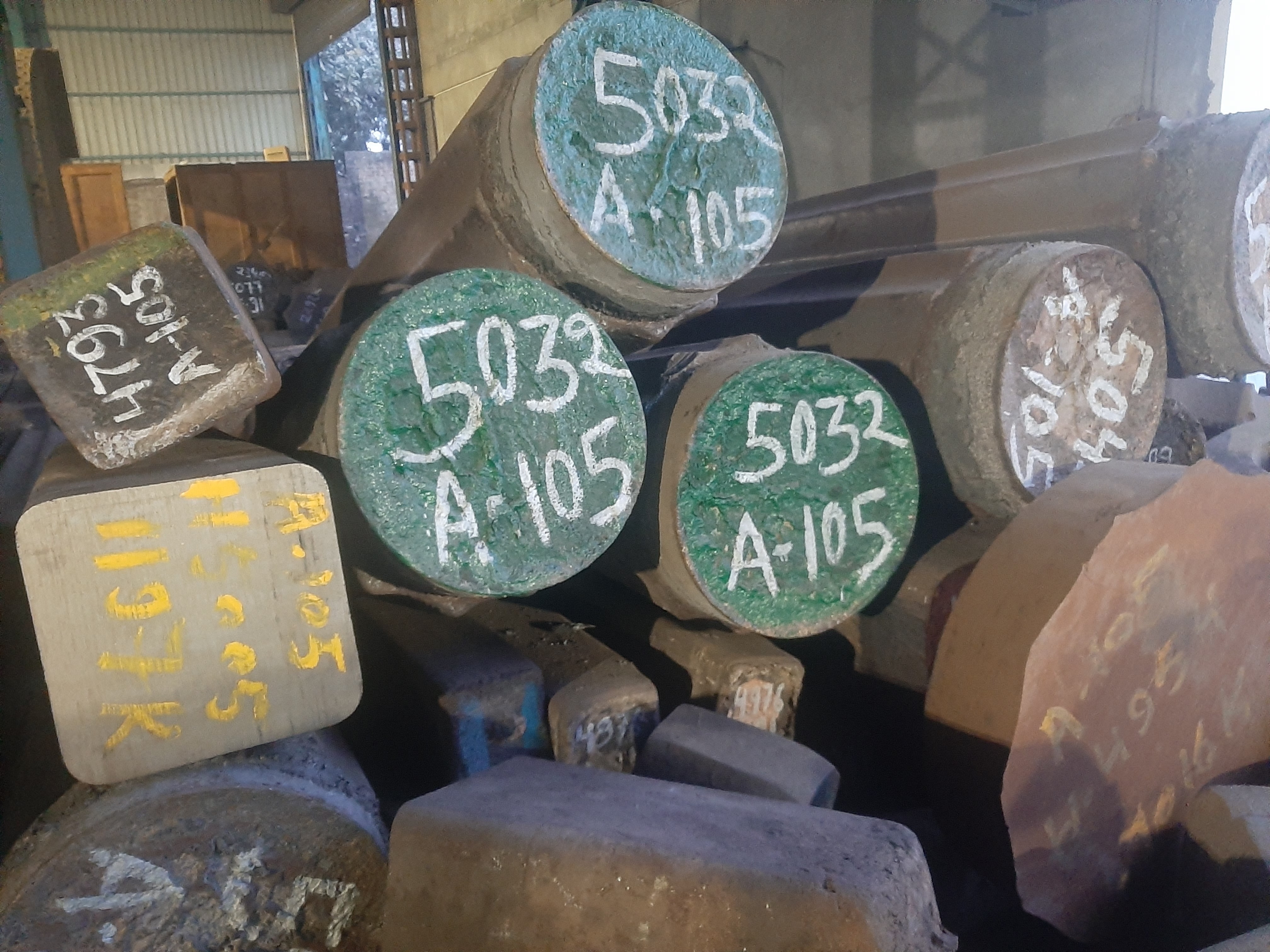

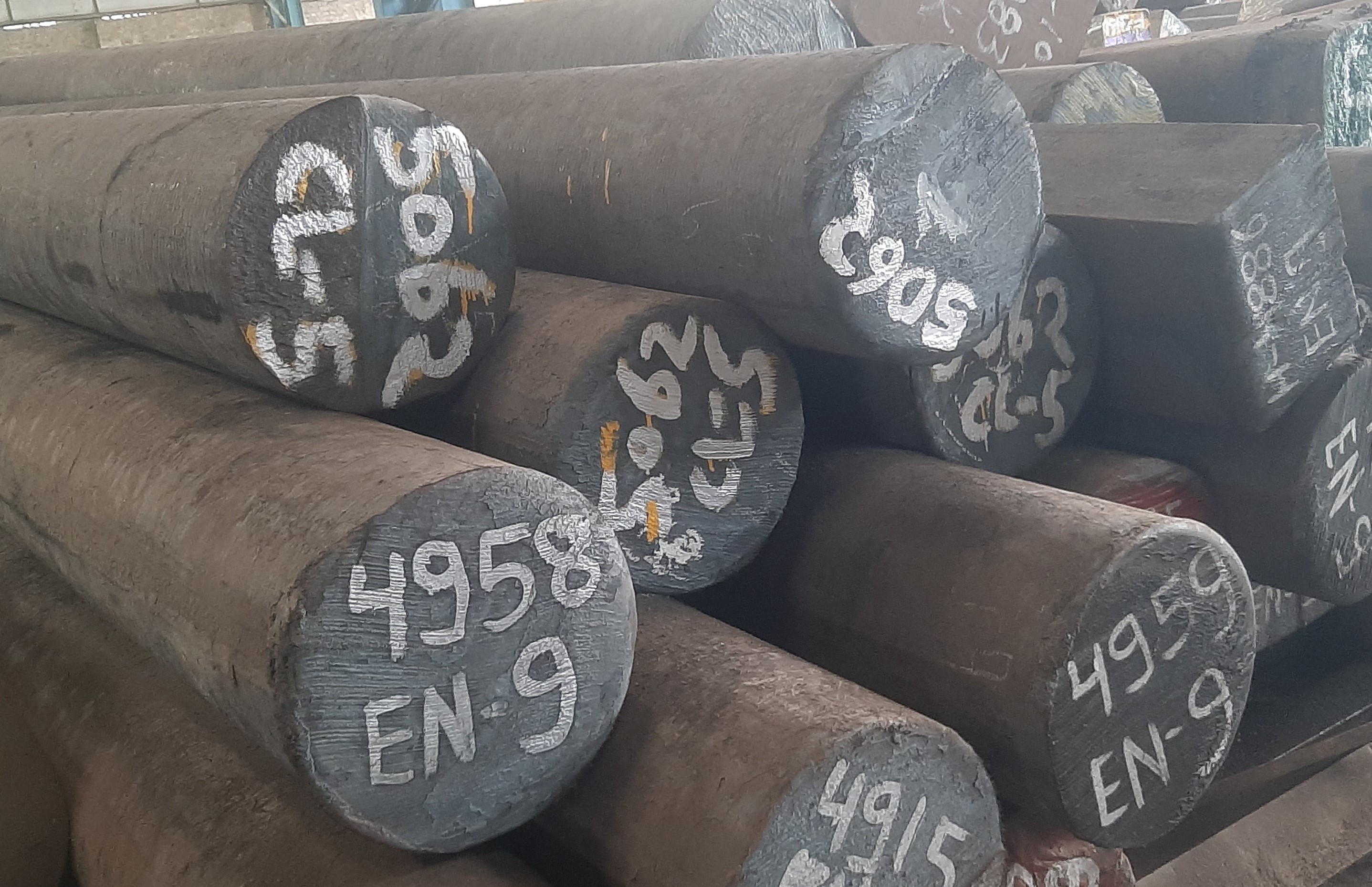

We are capable to produce forged components in carbon steel, alloy steel, stainless steel, duplex steel, super duplex steel and Nickel Alloy steel grades. Raw material for these forgings is procured as per respective material specification and/or customer specific requirements. We have well defined raw material ordering process and incoming raw material inspection process to ensure quality product manufactured by us. To control the lead time, we keep inventory of common regular raw material grades as well as souring in a shortest possible time.
Carbon Steel:
| Material Type | Material Grades |
|---|---|
| C-Mn-Fe | A105, SA266 Gr.1, Gr.2, Gr.3, Gr.4, St-52, 20Mn5 |
| C-Mn-Fe | A694 F42, F46, F52, F60, F65, F70 |
| C-Mn-Fe | A350 LF1, LF2, LF6 |
| C-Mn-Fe | AISI 1020,1030,1040, 1045, EN-8, EN-9 |
| C-Mn-Fe | S355J2G3/S355J2/S355N/S355NL |
| C-Mn-Fe | IS:2004 Cl-1, Cl-2, Cl-3, Cl-4, Cl-5 |
| C-Mn-Fe | IS:1570 C20, C30, C40, C45, C55 |
| C-Mn-Fe | A350 LF1, LF2, LF6 |
| C-Mn-Fe | A694 F42, F46, F52, F60, F65, F70 |
| 3 1/2. Ni | A350 LF3 |
Low Alloy Steel:
| Material Type | Grade | DIN | Werkstoff Nr |
|---|---|---|---|
| C - 1/2 Mo | SA182/SA336/A Gr. F1 | 15Mo3 | 1.5415 |
| 5Cr -1/2 Mo | SA182/SA336/A Gr. F5 | 12CrMo195 | 1.7362 |
| 9Cr-1Mo | SA182/SA336/A Gr. F9 | X12CrMo91 | 1.7386 |
| 1 1/4 Cr - 1/2 Mo | SA182/SA336/A Gr. F11 | 13CrMo4-5 | 1.7335 |
| 2 1/4 Cr - 1Mo | SA182/SA336/A Gr. F22 | 10CrMo9-10 | 1.738 |
| 9Cr-1Mo-V | A182 F91 Type-1 / Type-2 | X10CrMoVNb9-1 | 1.4903 |
Alloy Steel:
| Material Type | Material Grade | DIN | Werkstoff Nr |
|---|---|---|---|
| 1 1/4Cr-1/2Mo-1/4V | - | 21CrMov57 | 1.7709 |
| 1 Cr-1/4 Mo | EN 19 / 709M40 | 42CrMo4 | 1.7225 |
| 3/4Cr-1 3/4Ni-1/4Mo | AISI 4340 | 40NiCrMo7 | 1.6562 |
| 2 Cr-2Ni-1/2Mo | AISI 4340 | 30CrNiMo8 | 1.658 |
| 1 1/2Cr-1 1/2Ni- 1/4Mo | EN 24 / 817M40 | 34CrNiMo6 / 40Ni6Cr4Mo3 | 16582 |
| 1 1/2Ni-1 Cr -1/4 Mo - V | AISI 4340 | 40NiCrMoV6 | 1.6565 |
| 1 Ni- 1 Cr - 1/4 Mo | AISI 4340 | 36CrNiMo4 | 1.6511 |
| 2 1/2Cr-1/4Mo- V | AISI 4130 | 31CrMov9 | 1.8519 |
Stainless Steel, Duplex/Super Duplex Steel:
| Steel Type | Material Grade | UNS Number | DIN | Werkstoff Nr |
|---|---|---|---|---|
| Austenitic | SA 182 F304 | S30400 | X5CrNi18-10 | 1.4301 |
| Austenitic | SA 182 F304L | S30403 | X5CrNi18-9 | 1.4306 |
| Austenitic | SA 182 F304H | S30409 | X5CrNi18-10 | 1.4948 |
| Austenitic | SA 182 F316 | S31600 | X5CrNiMo17 12-2 | 1.4401 |
| Austenitic | SA 182 316L | S31603 | X2CrNiMo17 12-2 | 1.4404 |
| Austenitic | SA 182 F316H | S31609 | X5CrNiMo17 12-2 | 1.4919 |
| Austenitic | SA 182 F316L-Mo | S31603 | X2CrNiMo17-12-3 | 1.4432 |
| Austenitic | SA 182 F321 | S 32100 | X6CrNiTi18 10 | 1.4541 |
| Austenitic | SA 182 F321H | S 32109 | X6CrNiTi18 10 | 1.4878 |
| Austenitic | SA 182 F347 | S34700 | X6CrNiNb18-10 | 1.4550 |
| Austenitic | SA 182 F347H | S34709 | X6CrNiNb18-10 | 1.4961 |
| Austenitic | SA 182 317L | S31700 | X2CrNiMo18-16-4 | 1.4438 |
| Matensitic | SA182 F6A/ SS-410 | S41000 | X12Cr13 | 1.4006 |
| Matensitic | SA182 F6NM /SS-415 | S41500 | X3CrNiMo 13-4 | 1.4313 |
| Matensitic | SS-420 | S42000 | X20Cr13 / X30Cr13 | 1.4021 / 1.4028 |
| Duplex | SA 182 F51 | S31803 | X2CrNiMoN22-5-3 | 1.4462 |
| Duplex | SA 182 F60 | S32205 | X2CrNiMoN22-5-3 | 1.4462 |
| Super Duplex | SA 182 F 55 | S 32760 | X2CrNiMoCuWN25-7-4 | 1.4501 |
| Super Duplex | SA 182 F53 | S32750 | X2CrNiMoN27-7-4 | 1.441 |
"Ni-Alloy Grades: Inconel 600, 625, 718, Inconel 800, 825, Monel 400, C-276, Alloy 20, Nimonic Steel etc."
